THE SEPARATION AND DETERMINATION OF PLUTONIUM IN TWO LOW LEVEL RADIOACTIVE WASTE STREAMS

K.I. Burns and D.W. Everall
AECL
Chemistry and Chemical Engineering Division
Chalk River Laboratories
Chalk River, Ontario, Canada K0J 1J0

ABSTRACT

A program was initiated at Chalk River Laboratories (CRL) to determine the physical, chemical and radiological properties of wastes intended for disposal in IRUS (Intrusion Resistant Underground Structure), a belowground vault to be constructed at CRL. The isotopes of plutonium are among the most restrictive radionuclides for IRUS due to their high radiotoxicity and long half lives. A radiochemical method has been developed to determine ²³⁸Pu, ^239+240Pu and ²⁴²Pu in two waste streams, incinerator ash and liquid feed to a bitumenizer. Samples are spiked with 236Pu tracer, dried and fused at 960°C with Li₂B₄O₇/LiBO₂ (2:1) in a platinum boat. The plutonium is then separated by solvent extraction, electrodeposited onto stainless steel counting planchettes and measured by -spectrometry. Limits of detection for plutonium in solids are typically 0.01 Bq/g based on a 1-gram sample, a 4-hour counting period, and a 5% counting efficiency. This paper presents a summary of the method and the results from analysis of the two waste streams.

INTRODUCTION

In 1982, in support of its new waste disposal program, Chalk River Laboratories (CRL) initiated a Waste Categorization and Routing Program (WC&RP) to determine the physical, chemical and radiological properties of wastes. The near-term objective for the WC&RP was to develop the technologies and establish the procedures for characterizing candidate wastes destined for disposal in IRUS (Intrusion Resistant Underground Structure), a belowground disposal vault to be constructed at CRL. These radioactive wastes have been accumulated from 1946 to the present at CRL from on-site activities and off-site waste producers (universities, hospitals, etc.). Some information on the chemical and radionuclide inventory of these wastes was known but it was recognized that more information would be required to support a disposal case.

Two waste streams that were selected for initial characterization by the WC&RP were incinerator ash from the CRL radioactive waste incinerator, and active drain waste concentrated through reverse osmosis prior to its solidification in bitumen. These wastes were selected for initial characterization by the WC&RP for the following reasons: 1) these wastes appeared to be IRUS candidate wastes; 2) they represented a significant fraction of the CRL operational wastes; 3) they contained mixtures offission and activation products representative of the types of wastes generated across CRL; 4) the wastes contained low levels of these radionuclides which permitted easy handling and sampling for analysis; and 5) the radiochemical methods developed for these wastes might be easily adapted for analysis of other wastes.

As with most disposal facilities, the inventories of the long-lived - and -emitting radionuclides are highly restricted because they do not decay appreciably during the lifetime of the facility. One of the more restrictive radioelements for IRUS is plutonium. An analytical method has been developed to determine the -emitting isotopes of plutonium in both waste streams, based on solvent extraction followed by electroplating and measurement by -spectrometry.

This paper presents a summary of the method and the results for the two waste streams. The results have been used in modeling the performance of IRUS to demonstrate that these wastes can be safely disposed in the facility.

RADIOCHEMICAL ANALYSIS PROGRAM

The radiochemical analysis program was initiated in 1982 to determine the long-lived non--emitting radionuclides in CRL candidate waste streams for IRUS. The objectives of the radiochemical analysis program were to: 1) develop the radioanalytical methods capable of determining these radionuclides in the various waste forms destined for disposal; and 2) attempt to establish correlation factors between the -emitting and non--emitting radionuclides to enable the latter to be estimated non-destructively through the use of -ray spectrometry. The criteria for the radiochemical methods were that they should: 1) have adequate sensitivity to measure the activity concentration of a radionuclide in the waste, typically down to 0.01 to 1 Bq/g; 2) yield radiochemically pure radionuclides for measurement; and 3) be easily adapted for analysis of a variety of waste streams.

EXPERIMENTAL

Sampling and Analysis of Two Waste Streams

Radioactive ash, which is no longer produced, resulted from operation of the CRL incinerator during the period 1982 to 1989. The ash was initially stored in approximately 200 drums (each of a volume of 210L), however, it was finally bitumenized to improve its stability and reduce the volume. Of the 200 drums of ash, 80 were assayed for -emitting radionuclides with a -monitor and 14 were selected for sampling and destructive analysis prior to bituminization based on the presence of high levels of fission and activation products, or on unusual distributions of these two types of radionuclides. The procedure used for sampling the 14 drums, and homogenizing the ash samples, has been described previously (1). The samples were checked for homogeneity by measuring the radionuclide activity concentrations in 1.0-, 5.0- and 10.0-g samples from each sample bottle by -ray spectrometry. If the -ray spectrometry indicated that the sample was homogeneous, a 0.5- to 1.0-g sub-sample was taken for destructive radiochemical analysis for plutonium as described in the procedure below.

Liquid feed to the bitumenizer originates as effluent from the CRL active drain system, and is stored in a holding tank from where it is fed to the Waste Treatment Center (AC). It is filtered and concentrated through reverse osmosis and evaporation in the AC, prior to being mixed and solidified with bitumen in 0.21-m³ drums. Each bitumen campaign generates approximately 3 to 5 of these 0.21-m³ drums of bitumenized waste which have been concentrated from approximately 120,000 to 200,000 liters of active drain waste. Prior to bituminization, a sample containing approximately 1 L of the liquid feed to the bitumenizer is taken by operations staff at the WTC after vortex mixing of the liquid feed, and 500 mL are sent to the laboratory for -spectrometry and radiochemical analysis. The samples typically consist of two phases (supernate and solid precipitate), which are thoroughly mixed by shaking for one minute, prior to sampling for - spectrometry and destructive analysis. For -spectrometry, a weighed aliquot (10 to 25mL) is filtered, and the -emitting radionuclide activity concentrations in the liquid and solid fractions are determined separately. The -emitting radionuclide activities in the two fractions are then added together to determine the overall activity concentrations in the liquid feed. This approach is necessary to eliminate any bias that would be introduced from settling of the suspended solids during the measurement by -spectrometry. A weighed aliquot (0.5 to 1.0 mL) of the feed solution is taken at the same time for destructive radiochemical analysis for plutonium as described in the procedure below.

Plutonium Sample Dissolution

Direct acid attack was not successful in completely dissolving ash or liquid feed samples due to the presence of silica, insoluble refractory oxides (Al₂O₃, ZrO₂), and insoluble salts (eg. CaF₂). Experience at this laboratory in destructively analyzing a wide variety of solids for various radionuclides has demonstrated that high temperature fusions are the preferred method to ensure both complete dissolution of the matrix and isotopic exchange between an added tracer and the desired radioelement. Even after complete dissolution, plutonium can undergo numerous hydrolytic and radiolytic reactions which produce complex ions or polymeric colloids or cause changes in oxidation state with time. The formation of these species with different oxidation states can often result in low recoveries of plutonium. Our experience has shown that fusion with a 2:1 mixture of lithium tetraborate to lithium metaborate (Li₂B₄O₇:LiBO₂), followed by dissolution in 1.5 mole/L HNO₃, yields a clear solution from which plutonium can be extracted using tri-octyl phosphine oxide (TOPO) without further sample treatment. Extractions performed within a reasonable time (one week) on samples treated in this way typically result in overall recoveries of 80 to 95% after electroplating. Approximately 0.2 to 1.5 Bq of ²³⁶Pu tracer (AEA Technology, AEA Fuel Services Division, Process Services Division, B220 Harwell Laboratory, Oxfordshire, OX11 ORA) are added directly to a weighed sample aliquot in a platinum crucible. The sample is then dried in an oven at 120°C for one hour, and ashed at 500°C for 30 minutes. A 4:1 weight ratio of the Li₂B₄O₇/LiBO₂ flux to sample is added to the crucible and the mixture fused at 960°C for one hour. The sample is finally cooled and dissolved in approximately 100 mL of 1.5 mole/L HNO₃. Once dissolved, solutions are stable for a period of one week. If the samples contain high concentrations (5 to 10w/o) of the elements calcium, aluminum and silicon, precipitates (calcium and aluminum borosilicates) may form after prolonged storage (one to two weeks) which can adsorb plutonium and result in low recoveries.

Plutonium Separation

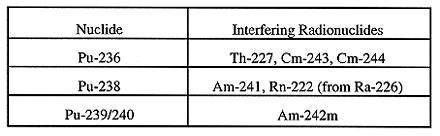

Plutonium separation on a sample should be carried out within a week of dissolution of the flux, otherwise the sample should be evaporated to near dryness several times with concentrated HNO3 containing 1% HF to convert all the plutonium to Pu (IV). Table I lists the -emitting radionuclides that cannot be resolved from the various plutonium isotopes using -spectrometry, and therefore must be removed during the radiochemical separations. The two radiochemical separation procedures for plutonium outlined below remove these interferences.

If the sample aliquot is known to contain less than 5 µg of uranium, the sample is made to contain 2 to 8 mole/L HNO₃ by the addition of concentrated HNO₃ and the plutonium is extracted into an equal volume of 0.1 mole/L TOPO in toluene (2). Both Pu (IV) and Pu (VI), along with uranium, thorium and neptunium (IV), are extracted under these conditions (3). The plutonium is back extracted into an equal volume of 0.1mole/L ammonium bioxalate from which it is electroplated onto a stainless steel counting planchette for measurement by -spectrometry. Although thorium and uranium follow the plutonium through the procedure, as long as they are less than 5 µg in the sample aliquot, they do not degrade the plutonium -spectrum significantly.

For those samples that contain more than 5 µg of uranium or that require higher decontamination factors, the plutonium is first extracted using 2-the noyltrifluoroacetone (TTA) (4,5). In this case, the sample is adjusted to contain 1 mole/L HNO₃ and the plutonium is extracted into an equal volume of 0.5 mole/L TTA in toluene. The TTA layer is washed with 1 mole/L HNO₃ and the plutonium is back extracted into an equal volume of 8 mole/L HNO₃. The TTA layer containing the uranium is discarded, and the plutonium in the aqueous layer is extracted into an equal volume of 0.1 mole/L TOPO in toluene. The TOPO layer is washed with 0.1 mole/L HNO₃, and the plutonium is finally back extracted into an equal volume of 0.1 mole/L ammonium bioxalate from which the plutonium is electroplated. Using this procedure to determine plutonium in low enrichment uranium, decontamination factors of 10⁷ from uranium have been achieved.

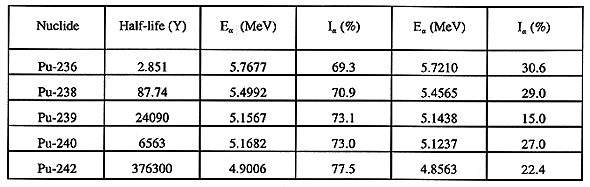

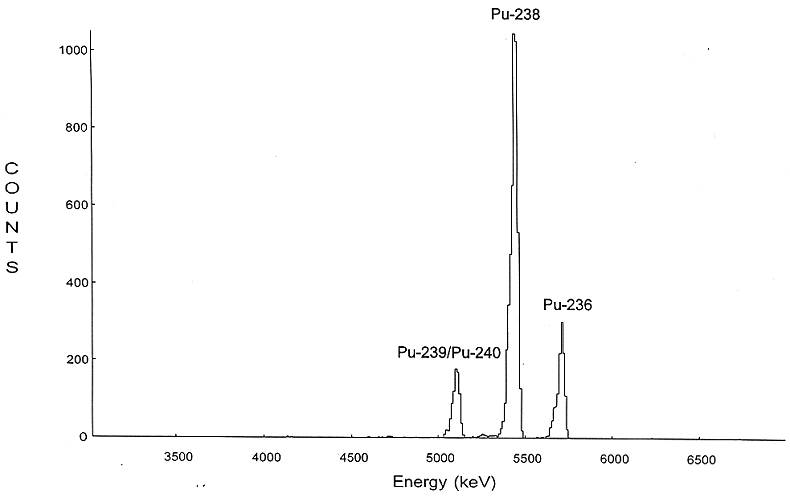

The activity concentrations of ²³⁸Pu, ^239+240Pu and ²⁴²Pu are determined from the intensities of their 5.4992, 5.1567+5.1682, and 4.9006 MeV -particle emission energies respectively, corrected for detector efficiency, yield from the ²³⁶Pu tracer, and normalized to sample weight. The nuclear data used in the calculation of the various activity concentrations of the plutonium isotopes is summarized in Table II.

Electrodeposition and Alpha Spectrometry

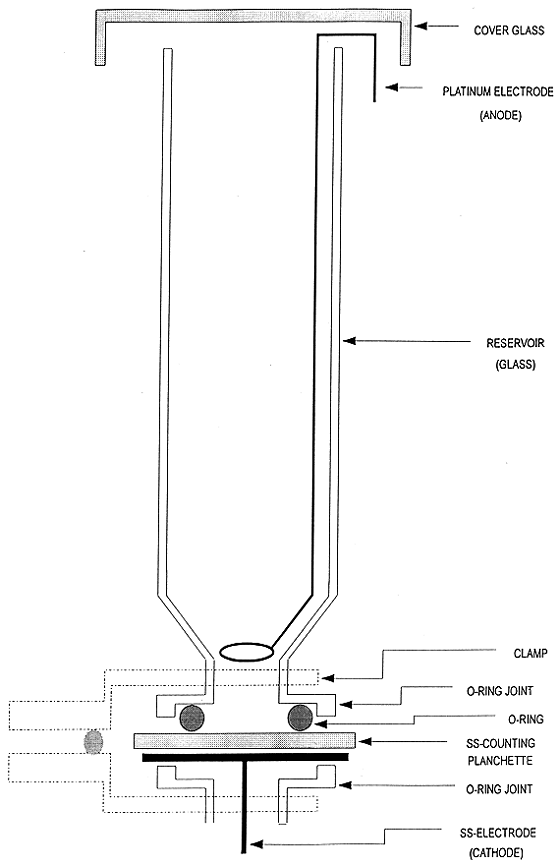

In order to produce the highest quality sources for measurement by -spectrometry, while at the same time ensuring reproducible source geometries, this laboratory employs electroplating for final source preparation. A diagram of the electroplating cells, which were constructed in this laboratory, is presented in Fig.1. The power supplies used for electroplating were simple and inexpensive AC adapters which supply 12V DC at 1000 mA current.

The sample, in 0.1 M ammonium bioxalate, is transferred to the cell along with 1.0 mL of 5.0 mole/L NH₄Cl as the electrolyte (6). The power is turned on and the sample is allowed to electroplate for a period of 8 to 16 hours to ensure at least 60% of the plutonium is electroplated. Prior to turning off the power, 1.0mL of 7 mole/L NH₄OH is added to make the solution basic to prevent any redissolution of the plated plutonium (6). The power is turned off, the solution discarded, the cell disassembled and the planchette removed. The planchette is rinsed first with water, followed by isopropyl alcohol and allowed to air dry. Plutonium sources prepared in this manner typically have a resolution (full width at half maximum) of 20 to 35 keV. A typical -spectrum of plutonium isotopes separated and electroplated according to the above procedures is presented in Fig. 2.

Plutonium measurements were made on an eight-channel Canberra Alpha Analyst spectroscopy system equipped with Canberra model A-450-20-AM alpha PIPS detectors. The Analyst is interfaced to a personal computer (model P5-100 Pentium) for system control, data storage and processing using Genie PC-based alpha analysis software. The system was calibrated for efficiency response as a function of -particle energy using an Amersham electroplated standard alpha source 9734RA containing ²⁴¹Am,²³⁹Pu and ²⁴⁴Cm.

RESULTS AND DISCUSSION

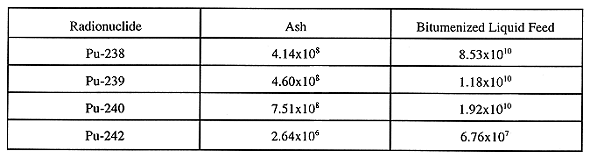

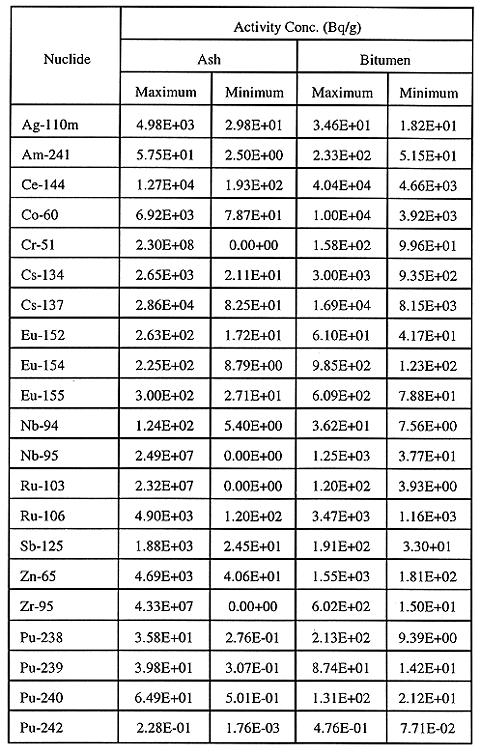

The activity concentrations of plutonium and a number of -emitting radionuclides have been determined in 14 samples of ash and 30 samples of liquid feed to the bitumenizer. The range in activity concentrations of the various radionuclides measured in ash and liquid feed to the bitumenizer has been summarized in Table III. These concentrations were used together with the estimated volume of each waste stream going into IRUS, to calculate the total inventory of each radionuclide in the first IRUS unit.

From homogeneity testing of ash samples, it was observed that the variation in radionuclide activity concentrations among five samples from the same drum was typically 25 to 30% (one standard deviation) while the radionuclide activity concentrations in Table III vary from two to three orders of magnitude. Similar variations were observed for liquid feed samples. The largest uncertainty in the estimate of the IRUS radionuclide inventories therefore, came from the variation in activity concentrations found in the waste, with little variation contributed from the sampling and analysis. The total volumes of ash and bitumenized liquid feed expected to be disposed of in the first IRUS unit (IRUS volume of 1912 m³) were 30 m³ and 143 m³ respectively. The inventories of the four plutonium -emitting radionuclides in these volumes of wastes have been summarized in Table IV. Because the -spectrometer could not resolve ²³⁹Pu from ²⁴⁰Pu, a theoretical activity ratio of 0.613 was derived for ²³⁹Pu to ²⁴⁰Pu from published tables (7) of fission and activation product activity concentrations as a function of burnup for natural uranium fuel. A burnup of one year (800 GJ/kg uranium) with a decay period of 5 years was assumed for the calculation.

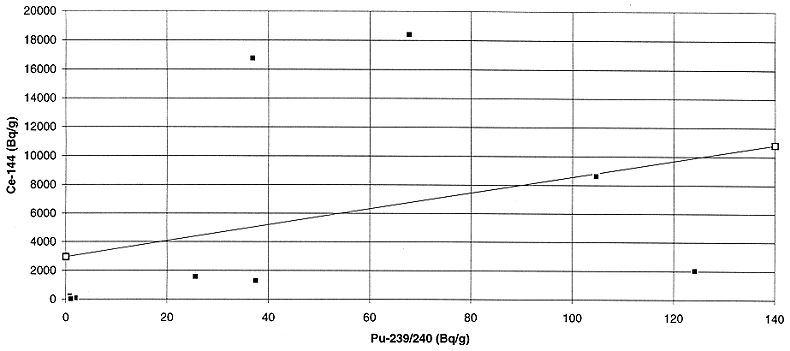

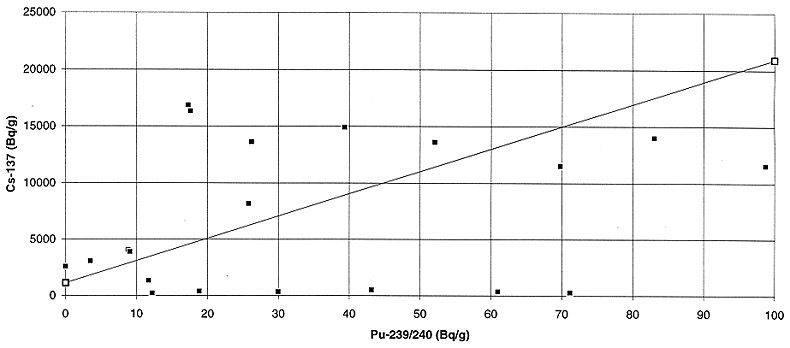

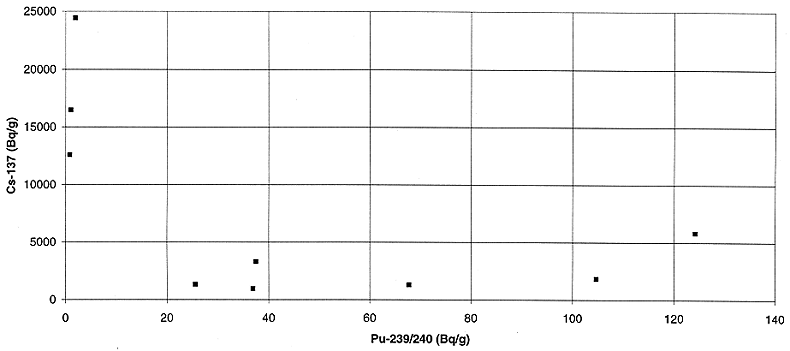

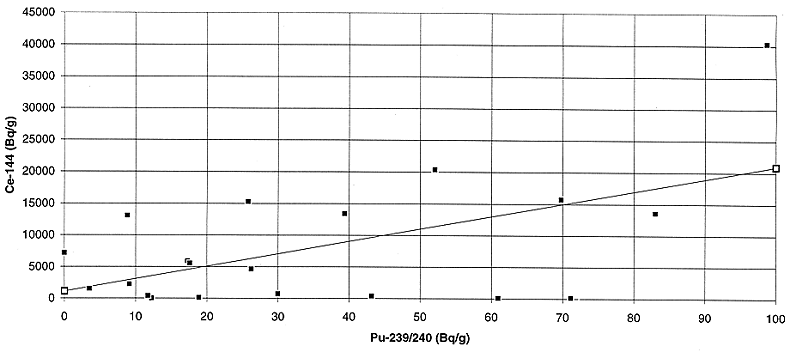

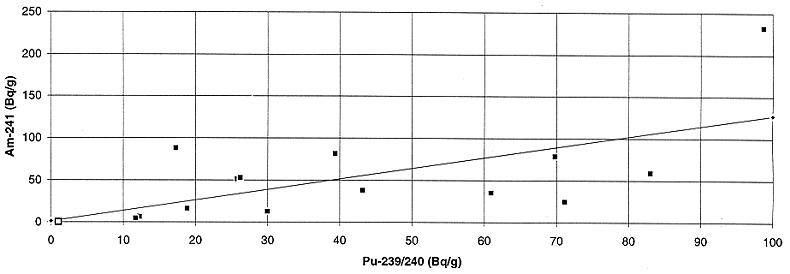

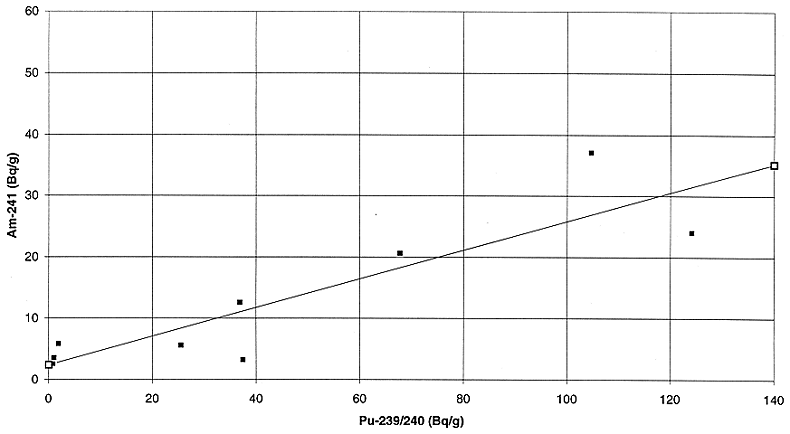

Because of the large volume of wastes handled routinely by waste management operations, it is not possible to sample and analyze each package prior to emplacement in a disposal facility. Therefore it is desirable to be able to estimate inventories of long-lived radionuclides in packages using the activity concentrations of -emitting radionuclides determined from -monitoring. To accomplish this, correlations between -emitting and non--emitting radionuclides must be established through a rigorous sampling and analysis program. In the case of plutonium, the -emitting radionuclides which were examined for possible correlation were ¹³⁷Cs, ²⁴¹Am and ¹⁴⁴Ce. The correlations for these three radionuclides with ^239+240Pu in the two waste streams are presented in Figs. 3 to 8. The correlation between ²⁴¹Am and plutonium appears to be the best, however, due to the low energy of the ²⁴¹Am -ray (59.5 keV), it is not the best candidate for large packages due to attenuation. For large packages, ¹⁴⁴Ce appears to be the next best candidate which can be used to predict the plutonium activity concentration within a factor of 3 to 5 in the two waste streams. Although the correlation is far from ideal, it may be acceptable for those cases where the predicted plutonium activity concentration is well below the activity concentration limit for the disposal facility.

CONCLUSIONS

A method has been developed for the determination of plutonium in two radioactive waste streams. The method has limits of detection ranging from 0.01 to 0.001 Bq/g ^239+240Pu per sample in solids. The method is capable of measuring plutonium in the presence of large amounts of uranium and is applicable to the analysis of a variety of sample types such as soils, sludges and fuel. It has been used to establish correlation factors with ²⁴¹Am and ¹⁴⁴Ce which enables plutonium activity to be estimated non- destructively through the use of -ray spectrometry to within a factor of 3 to 5 in two waste streams. It has the added advantage that it can be easily adapted for use with /-discriminating liquid scintillation counting for screening purposes.

REFERENCES

1. K.I. BURNS, W.J. EDWARDS, G.W. CSULLOG, D.W. EVERALL, P.K. LEESON, and J.E. CHEYNE, "Recent Developments in Waste Characterization at Chalk River Nuclear Laboratories," Proceedings of the Symposium on Waste Management, Feb.26 - Mar. 2, 1989, Waste Management '89, Volume II, pp.351-358.
2. DAZHU YANG, YONGJUN ZHU, and S. MOBIUS, "Rapid Method for Alpha Counting with Extractive Scintillator and Pulse Shape Analysis," J. of Radioanalytical Chemistry, Articles, Vol. 147, No. 1, pp.177-189 (1991).
3. J.C. WHITE, and W.J. ROSS, "Separations by Solvent Extraction with Tri-n-octylphosphine Oxide," U.S. National Academy of Sciences, Nuclear Science Series, NAS-NS 3102 (1961).
4. DAZHU YANG, YONGJUN ZHU, and RONGZHOU JIAO, "Determination of Np, Pu and Am in High Level Radioactive Waste with Extraction Liquid Scintillation Counting", the 5^th International Seminar for Liquid Scintillation Counting, Proceedings of the 3^rd Low Level Counting Conference using Liquid Scintillation Analysis, pp 127-143 (1992).
5. G.H. COLEMAN, "The Radiochemistry of Plutonium, U.S. National Academy of Sciences," Nuclear Science Series, NAS-NS 3058, (1965).
6. E.P. HOROWITZ, M.L. DIETZ, D.M. NELSON, J.J. LAROSA, and W.D. FAIRMAN, "Concentration and Separation of Actinides from Urine Using a Supported Bifunctional Organophosphorus Extractant," Anal. Chim. Acta, V238, N2, pp. 263-271 (1990).
7. L.J. CLEGG, and J.R. COADY, "Radioactive Decay Properties of CANDU Fuel, Volume 1. The Natural Uranium Fuel Cycle, Part 2: Irradiated Fuel," Atomic Energy of Canada Ltd. Report AECL-4436/1, (1997).
